Happymodel DiamondF4 ELRS AIO 5-IN-1 Flight controller built-in OPENVTX ESC OSD Receiver

Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection)

Power supply: 1S battery input (DC 2.9V-4.35V)

Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Packet Rate option: 50Hz/150Hz/250Hz/500Hz

Compatible with ExpressLRS V2.0 TX Module

Couldn’t flash separately ExpressLRS firmware

Bundle

Aikon F7 Mini HD 20x20 V3 Flight Controller

HGLRC Forward F4 AIO Flight Controller

MAMBA Stack Basic F722 Mini MK3 (F40_BLS MINI)

When you connect the USB, the receiver and OSD settings can be saved

LED signal selection （when Mamba Led sys avaiable）

The pad area of Mini flight controller (20×20) increased by 140%

Add self-recovery insurance to the receiver's 5V power supply

Standard flight controller (30.5×30.5) adds spare pad

Gyro uses an independent Low Dropout Regulator (Low Dropout Regulator) and reduces ripple interference

FC Specifications
MAMBA Basic F722MINI MK3
MCU: 216MHz STM32F722RET6
GYRO: MPU Series Six-Axis
Barometer: Yes
OSD: Yes
Blackbox: 16M Flash Memory
Uarts: 6 Set
ESC Soft: Dshot300/600
ESC Telemetry: Yes
Power Led: Yes
LED Controller: BF LED
S/F.Port: Yes
RSSI: Yes
Buzz: Yes
Input: 2~6S Lipo (8.4~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 2.5A
MOUNTING: 20mm, M2

ESC Specifications
MAMBA F40_128K MINI
INPUT VOLTAGE: 2~6S Lipo (8.4V~25.2V)
CONTINUE CURRENT: 40A×4
BURST CURRENT: 45A (10S)
BEC: No
Target：BLHeli_32 MAMBA  F40_128K_MINI
SOFT: Dshot300/600/1200
TVS Protection: Yes
MOUNTING: 20mm,M3/M2

MAMBA F40_BLS MINI
INPUT VOLTAGE: 2~6S Lipo (8.4V~25V)
CONTINUE CURRENT: 40A×4
BURST CURRENT: 45A (10S)
BEC: No
Target：BLHeli_S CH40
SOFT: Dshot300/600
TVS Protection: Yes
MOUNTING: 20mm, M3/M2


Diagram link from help centre link

MAMBA Stack Basic F405 MK3 F50_BLS

MAMBA Basic F405 MK3 FC& 40A/50A 8bit 6S Stack

FC Specifications
MAMBA Basic F405MK3
MCU: 168MHz STM32F45RGT6
GYRO: MPU Series Six-Axis
Barometer: Yes
OSD: Yes
Blackbox: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600
ESC Telemetry: Yes
Power Led: Yes
LED Controller: BF LED/MB LED（4 Set 2812 LED）
S/F.Port: Yes
RSSI: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A&  5V 3A ( (System Power)&5V 3A(LED)& 9V 3A
MOUNTING: 30.5mm, M3

ESC Specifications
MAMBA F50_BLS
INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
CONTINUE CURRENT:50A×4
BURST CURRENT:60A (10S)
BEC: No
Target：BLHeli_S CH40
SOFT: Dshot300/600
TVS Protection: Yes
MOUNTING: 30.5mm/M3

Mamba F405 Flight Controller MK2

Mamba F405 Flight Controller Betaflight STM32 MPU6000 OSD Built-in 5V/2A BEC

Firmware Target ： FURYF4OSD （Legacy）

Specifications

MCU: 168MHz STM32F405RGT6 32BIT
IMU: MPU Series Six-Axis
Baro: No
OSD: BF OSD
Blacbox: 16M Flash Memory
Uarts: 3Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX6
LED: Blue&Orange for FC Status,Green 9V,White 5V,Red 3.3V

WS2812 LED Control: BF LED Control
Smartaudio: Yes
RSSI: Yes
Buzz: Yes


PDB Specifications

Input: 3~6S Lipo (12.6~25V)
VTS Protection: Yes
BEC: 5V 2.5A & 9V 2A

FC Firmware
BetaFlight
Target: FURYF4OSD


Physical

Mounting: 30.5×30.5mm,Φ3
Dimensions:
Weight: 7.5g


Including
1×FC MAMBA F405 MK2

Superbee F4 Lite AIO flight controller ELRS for 1s tiny whoop

SPI ELRS version Firmware target: CrazybeeF4SX1280

SPI FRSKY version Firmware target: CrazybeeF4FR

Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V)

Power supply: 1S LiPo/LiPo HV (2.8v~4.35v)

Currents: 5A continuous peak 6A (5 seconds)

Default protocol: DSHOT150/DSHOT300/DSHOT600

ExpressLRS 2.4GHz Receiver	Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz

Could bind with ELRS V2.0 firmware TX module

Used

Flywoo Goku F411 2-4S 16x16 Stack/Combo (F4 FC / 13A ESC)

Matek H743-Wing V3 Flight Controller

Matek F411-WTE Wing Flight Controller

Diatone Mamba App f722 mk4 FC

Great fc, used for only one flight because I got a new stack. Has the Speedybee app which allows you to control betaflight from your phone. Open to trades, let me know what you have. Fpvexhchange wont allow to to upload pictures, send me a message if you want a pic of the fc, although it looks brand new.

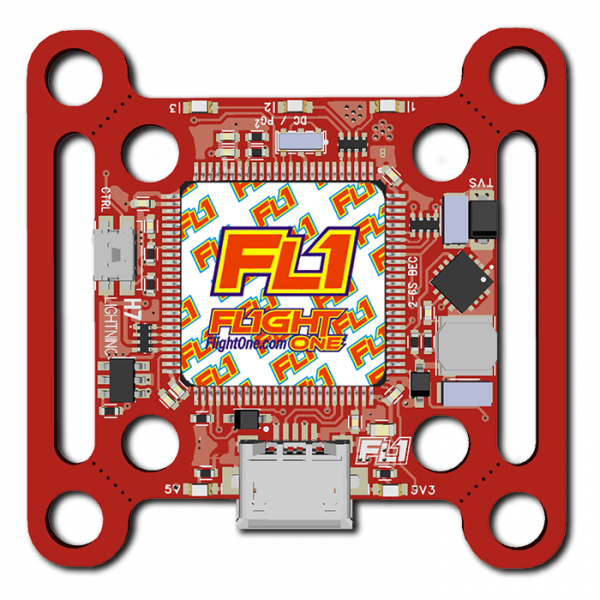

FlightOne Lightning H7 500MHz Flightcontroller FalcoX HeadsUP 6S

AIKON F7 AIO 60A 6S

Runcam Nano HD Camera for HDZero

+ $11.95 USPS Priority, or $5 USPS 1st Class.

JHEMCU GHF420AIO-35A F4 OSD FC + 600mw VTX

Adding matching Jhemcu 600mw VTX for no charge.

No damage whatsoever. It should work well.

jhemcu 1-2S F411, 5A BLHeli-S ESC, Free FrSky Archer RS

Includes free FrSky Archer RS receiver wired with Smart Port telemetry.
